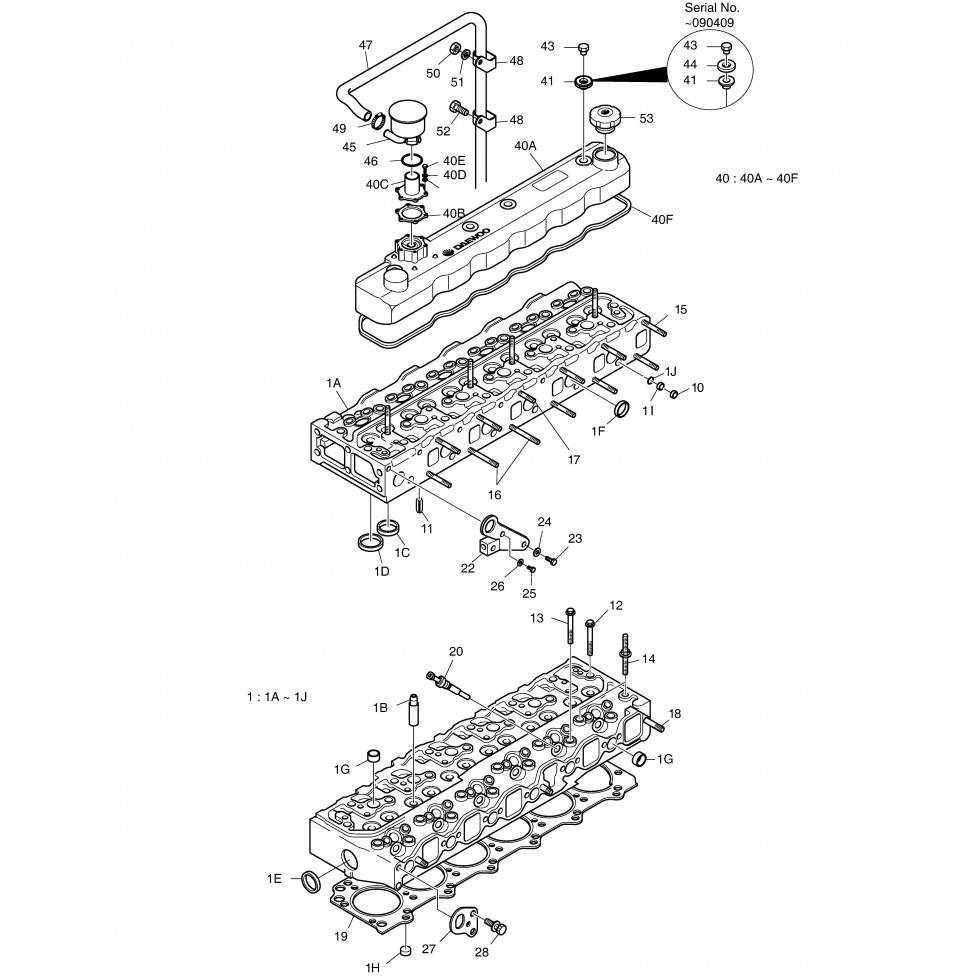

005 CYLINDER HEAD

Таблица-описание

Key	Parts No	Description
1	65.03101-6071A	CYLINDER HEAD ASS`Y
1	150113-00048	HEAD ASSY,CYLINDER
1A	65.03101-1043C	. HEAD;CYLINDER
1A	65.03101-1043D	. HEAD;CYLINDER
1B	65.03201-1013	. GUIDE;VALVE
1B	65.03201-1063	. GUIDE,VALVE
1D	65.03203-1053	. SEAT;INLET VALVE
1C	65.03203-1054	. SEAT;EXHAUST VALVE
1E	65.90302-0015	. PLUG;CORE(NEAR FACE)
1F	65.90302-0030	. PLUG;CORE(EXHAUST MAIN)
1G	65.90302-0019B	. PLUG;CORE
1H	65.90302-0045	. PLUG;CORE
1I	65.90302-0027	. PLUG;CORE
1J	65.90302-0011	. PLUG;DRILLED PASS
10	65.90302-0017	PLUG;WATER JET CORE
11	65.91710-0004	RING;STOPPER
12	65.90021-0002	BOLT;CYLINDER HEAD
13	65.90021-0003	BOLT;CYLINDER HEAD
14	65.90021-0004	BOLT;CYLINDER HEAD
15	06.06125-8717	BOLT;STUD
16	06.06125-8723	BOLT;STUD
17	06.06125-8709	BOLT
18	06.06225-0706	BOLT;STUD
19	65.03901-0055	GASKET;CYLINDER HEAD
20	65.26815-0004	PLUG
22	65.19202-5005	HOOK;LIFTING
23	06.01733-4409	BOLT;HEX
24	06.16731-2110	WASHER;SPRING
25	06.01733-4208	BOLT
26	06.16731-2108	WASHER;SPRING
27	65.19202-0005	HOOK;LIFTING
28	06.01943-3213	BOLT
40	65.03401-6097	CYLINDER HEAD COVER ASS`Y
40	150106-00006	CYLINDER HEAD COVER ASS`Y
40A	65.03401-6094A	. COVER;CYL. HEAD
40B	65.03903-0001	. PACKING;BREATHER PIPE
40C	65.01801-0011	. CASE;BREATHER
40D	06.16731-2104	. WASHER;SPRING
40E	06.04190-8808	. BOLT
40F	65.03905-0002C	. GASKET;CYLINDER HEAD COVER
40F	400603-00022	. GASKET;CYLINDER HEAD COVER
41	65.03905-0023A	GASKET;CYLINDER HEAD COVER
41	400603-00023	GASKET;CYL. HEAD COVER
43	65.90501-0028	NUT;CYLINDER HEAD COVER
44	65.90701-0202	WASHER;PLATE
45	65.01801-5035A	BREATHER PIPE ASS`Y
46	65.96501-0032B	O-RING;BREATHER
47	65.96301-0472A	HOSE,RUBBER;BREATHER PIPE
48	65.97401-0179	CLIP;WATER HOSE
49	06.67020-0105	CLAMP
50	06.11063-8214	NUT
51	06.16731-2107	WASHER
52	06.01913-3111	BOLT
53	65.01810-5011	CAP,OIL FILLER
