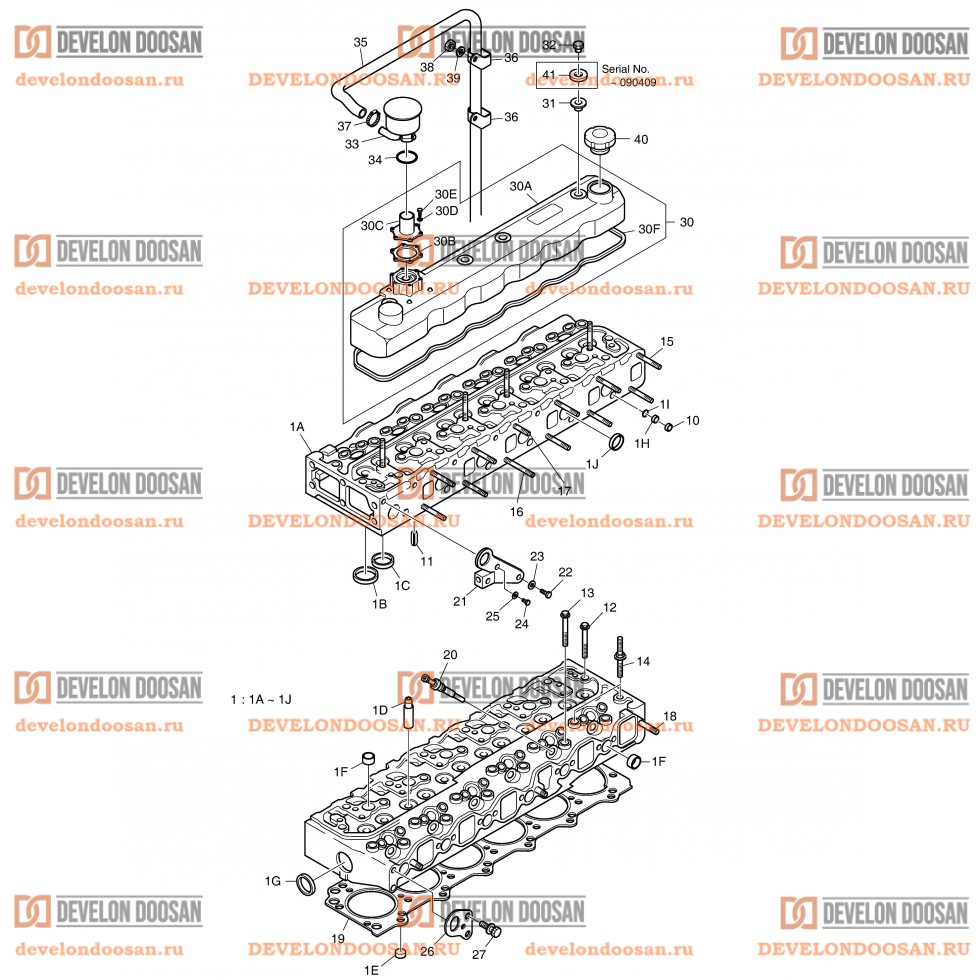

005 CYLINDER HEAD

Таблица-описание

Key	Parts No	Description
1	65.03101-6069	CYLINDER HEAD ASS`Y
1	65.03101-6071A	CYLINDER HEAD ASS`Y
1	65.03101-6071B	CYLINDER HEAD ASS`Y
1	150113-00048	HEAD ASSY,CYLINDER
1A	65.03101-1038	. HEAD;CYLINDER
1A	65.03101-1043C	. HEAD;CYLINDER
1A	65.03101-1043D	. HEAD;CYLINDER
1B	65.03203-1019	. SEAT;INLET VALVE
1B	65.03203-1053	. SEAT;INLET VALVE
1C	65.03203-1020	. SEAT;EXHAUST VALVE
1C	65.03203-1054	. SEAT;EXHAUST VALVE
1D	65.03201-1013	. GUIDE;VALVE
1D	65.03201-1013A	. GUIDE;VALVE
1D	65.03201-1063	. GUIDE,VALVE
1E	06.15090-2313	. PLUG;CORE
1E	65.90302-0045	. PLUG;CORE
1F	65.90302-0019B	. PLUG;CORE
1G	65.90302-0015	. PLUG;CORE(NEAR FACE)
1H	06.15090-2305	. PLUG;CORE
1H	65.90302-0027	. PLUG;CORE
1I	65.90302-0011	. PLUG;DRILLED PASS
1J	65.90302-0016	. PLUG;CORE(EXHAUST MAIN)
1J	65.90302-0030	. PLUG;CORE(EXHAUST MAIN)
10	65.90302-0017	PLUG;WATER JET CORE
11	65.91710-0004	RING;STOPPER
12	65.90021-0002	BOLT;CYLINDER HEAD
12	65.90021-0002	BOLT;CYLINDER HEAD
13	65.90021-0003	BOLT;CYLINDER HEAD
14	65.90021-0004	BOLT;CYLINDER HEAD
14	65.90021-0004	BOLT;CYLINDER HEAD
15	06.06125-8717	BOLT;STUD
16	06.06125-8723	BOLT;STUD
17	06.06125-8709	BOLT
18	06.06225-0706	BOLT;STUD
19	65.03901-0066	GASKET;CYLINDER HEAD
19	65.03901-0066A	GASKET;CYLINDER HEAD
20	65.26815-0002	PLUG;DUMMY
20	65.26815-0004	PLUG
21	65.19202-5005	HOOK;LIFTING
22	06.01733-4409	BOLT;HEX
23	06.16731-2110	WASHER;SPRING
24	06.01733-4208	BOLT
25	06.16731-2108	WASHER;SPRING
26	65.19202-0005	HOOK;LIFTING
27	06.01943-3213	BOLT
30	65.03401-6057A	CYLINDER HEAD COVER ASS`Y
30	65.03401-6064	CYLINDER HEAD COVER ASS`Y
30	65.03401-6064A	CYLINDER HEAD COVER ASS`Y
30	65.03401-6097	CYLINDER HEAD COVER ASS`Y
30	65.03401-6097B	CYLINDER HEAD COVER ASS`Y
30	150106-00006	CYLINDER HEAD COVER ASS`Y
30A	65.03401-0061A	. COVER;CYL. HEAD
30A	65.03401-6094	. COVER;CYL. HEAD
30A	65.03401-6094A	. COVER;CYL. HEAD
30B	65.03903-0001	. PACKING;BREATHER PIPE
30C	65.01801-0011	. CASE;BREATHER
30D	06.16731-2104	. WASHER;SPRING
30E	06.04190-8808	. BOLT
30F	65.03905-0002C	. GASKET;CYLINDER HEAD COVER
30F	65.03905-0002B	. GASKET;CYLINDER HEAD COVER
30F	400603-00022	. GASKET;CYLINDER HEAD COVER
31	65.03905-0023	GASKET;CYL. HEAD COVER
31	400603-00023	GASKET;CYL. HEAD COVER
31	400603-00023B	GASKET,CYLINDER HEAD COVER
32	65.90501-0028	NUT;CYLINDER HEAD COVER
33	65.01801-5035	BREATHER PIPE ASS`Y
33	65.01801-5035A	BREATHER PIPE ASS`Y
34	65.96501-0032B	O-RING;BREATHER
35	65.96301-0354	HOSE;RUBBER
35	65.96301-0416	HOSE;RUBBER
35	65.96301-0472A	HOSE,RUBBER;BREATHER PIPE
36	65.97401-0179	CLIP;WATER HOSE
37	06.67020-0105	CLAMP
38	06.11063-8214	NUT
39	06.16731-2107	WASHER
40	65.01810-5007	CAP;OIL FILLER
40	65.01810-5011	CAP,OIL FILLER
41	65.90701-0202	WASHER;PLATE

005 CYLINDER HEAD
