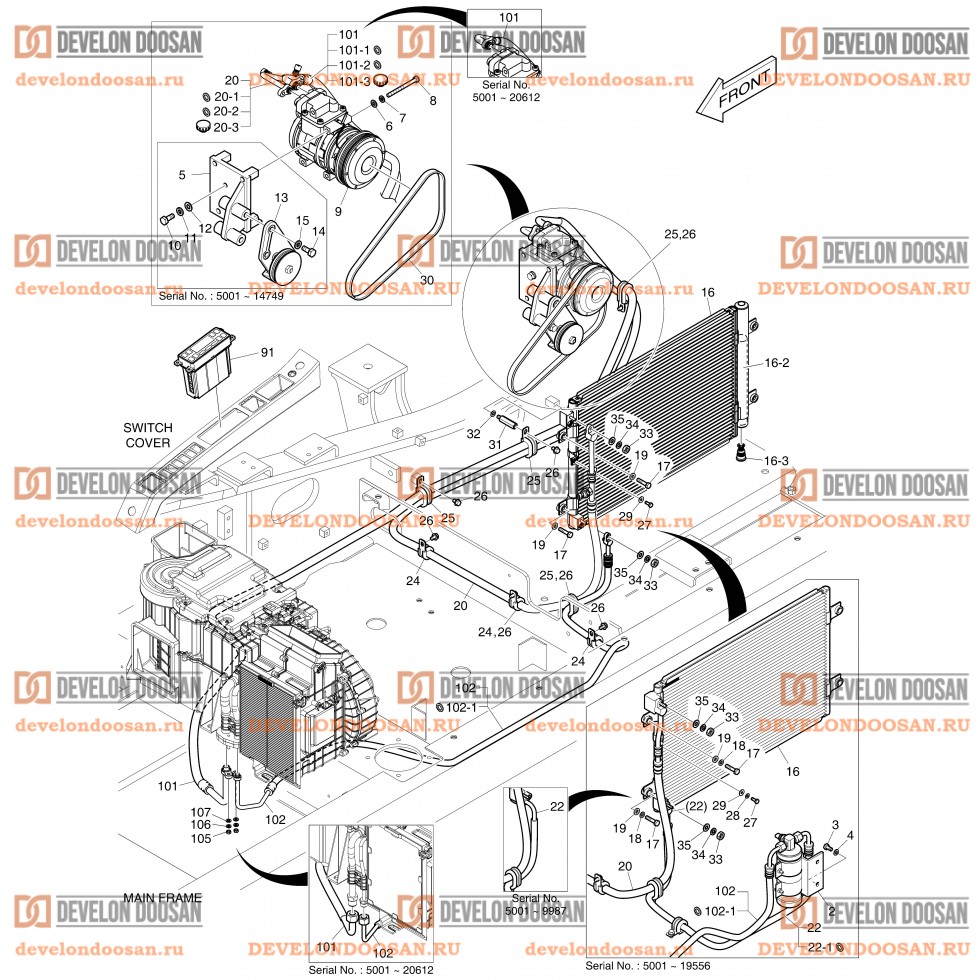

1800 AIRCONDITIONER

Таблица-описание

Key	Parts No	Description
-	K1001332G	AIR CONDITIONER
2	2204-6039A	RECEIVER DRIER
2	300720-00003	DRYER,RECEIVER
3	S0508666	BOLT,M8X1.25X16
4	S5102503	WASHER
5	2197-1798C	BRACKET;COMPRESSOR
6	S5010513	WASHER,PLAIN
7	S5102503	WASHER
8	S0557166	BOLT
9	2208-6013B	COMPRESSOR ASSY,AIR
9	440205-00070	COMPRESSOR ASSY,AIR CON
10	S0712153	BOLT M10X1.25X28
11	S5102603	WASHER
12	S5010613	WASHER
13	2107-6006	PULLEY ASS`Y,IDLE
14	S0759853	BOLT
15	S5102603	WASHER
16	520-00004	CONDENSER,AIR CON
16	440204-00046A	CONDENSER,AIR CON
16-2	101516-00020	. DESICCANT
16-3	400406-01367	. FILTER,CONDENSER
17	S0509366	BOLT,HEX;M8X1.25X35
18	S5102503	WASHER
19	2114-1058D29	WASHER
19	DS0401202	WASHER
20	K1001277C	HOSE;DISCHARGE
20	420102-00947	HOSE,AIR CON;DISCHARGE
20-1	2180-6088	. O-RING
20-2	K1011384	. O-RING
20-3	1.161-00018	. CAP;CHECK PORT(H)
22	K1001279C	HOSE;LIQUID(1)
22	420102-00239	HOSE;LIQUID(1)
22	420102-00694	HOSE,AIR CONDITIONER
22-1	K1011388	. O-RING
24	124-00208D3	CLIP
25	124-00209D1	CLIP
26	K1001029	BOLT,HEX FLANGE
27	S0504666	BOLT,HEX;M6X1.0X16
28	S5010303	WASHER
29	2114-1058D52	WASHER
30	2106-1019D10	V-BELT 4PK 990L
30	2106-1019D11	V-BELT
31	2120-2187	BOLT,STUD
32	S5102503	WASHER
33	S4012303	NUT
34	S5102303	WASHER,SPRING
35	S5000313	WASHER
91	543-00107	CONTROL PANEL,AIR CON
101	K1001278C	HOSE;SUCTION
101	420102-00630A	HOSE,AIR CONDITIONER
101	420102-01111	HOSE,AIR CONDITIONER;SUCTION
101-1	2180-6086	. O-RING
101-2	K1011385	. O-RING
101-3	1.161-00019	. CAP;CHECK PORT(L)
102	K1001280C	HOSE;LIQUID(2)
102	420102-00695	HOSE,AIR CONDITIONER;LIQUID(2)
102	420102-00948	HOSE,AIR CON;LIQUID
102	420102-01110	HOSE,AIR CONDITIONER;LIQUID
102-1	K1011388	. O-RING
105	S4012303	NUT
106	S5102303	WASHER,SPRING
107	S5000313	WASHER
