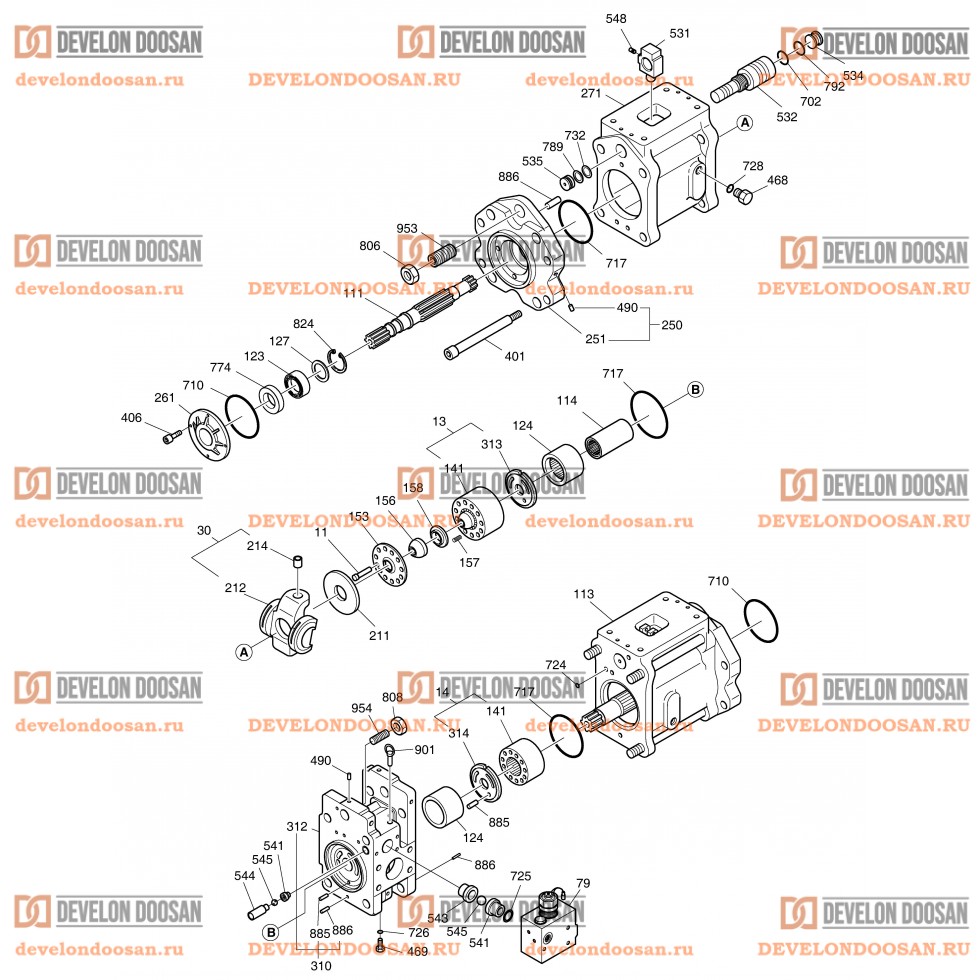

4100 MAIN PUMP

Таблица-описание

Key	Parts No	Description
-	401-00356A	MAIN PUMP
-	400914-00026	PUMP,MAIN
79	719753	VALVE;PROPORTIONAL
111	124568	SHAFT;DRIVING(F)
113	124569	SHAFT;DRIVING(R)
114	113783	COUPLING;SPLINE
123	219362	BEARING;ROLLER
124	219363	BEARING;SPACER
127	113784	BEARING;SPACER
13	720777-PH	CYLINDER ASS`Y(R)
13	K9006409	CYLINDER ASS`Y(R)
141	137491	BLOCK;CYLINDER
313	115798	PLATE;VALVE(R)
14	720778-PH	CYLINDER ASS`Y(L)
14	K9006410	CYLINDER ASS`Y(L)
141	137491	BLOCK;CYLINDER
314	115799	PLATE;VALVE(L)
11	704543A	PISTON & SHOE ASS`Y
153	115786	PLATE;PUSH
156	121437	BUSH;SPHERICAL
157	113787	SPRING;CYLINDER
158	113789	SPACER
211	113790	PLATE;SHOE
30	717008	SWASH PLATE ASS`Y
212	113780	PLATE;SWASH
214	218550	BUSH;TILTING
250	718424	SUPPORT KIT
251	113791	SUPPORT
261	113792	COVER;SEAL(F)
271	113794	CASING;PUMP
310	707849	VALVE BLOCK KIT
312	113795	BLOCK;VALVE
401	113797	BOLT;SOCKET M20x210
406	200846	BOLT;SOCKET M8X20
468	108847	PLUG;VP
469	108848	PLUG PF1/8
490	224308	PLUG
*	717005	TILTING PIN ASS`Y
531	113807	PIN;TILTING
548	113380	PIN;FEEDBACK
532	113798	PISTON;SERVO
534	113799	STOPPER(L)
535	113800	STOPPER(S)
*	704550A	CHECK 1 ASS`Y
541	113706	SEAT
543	113705	STOPPER 1
545	200166	BALL;STEEL
*	704544A	CHECK 2 ASS`Y
541	113706	SEAT
544	113703	STOPPER 2
545	200166	BALL;STEEL
702	220019	O-RING 1BG35
710	204452	O-RING 1BG95
717	201639	O-RING 1BG145
724	201765	O-RING 1BP8
725	201689	O-RING
726	S8000141	O-RING
728	201721	O-RING 1BP24
732	220016	O-RING 1BP18
774	212231	SEAL;OIL TCV40V
789	203480	RING;BACK-UP T2P18
792	203418	RING;BACK-UP T2G35
806	201557	NUT M16
808	102048	NUT M20
824	202606	RING;SNAP
885	113801	PIN D8X12L
886	200678	PIN;SPRING
901	212033	BOLT;EYE
953	118892	SCREW;SET M16X30L
954	113803	SCREW;ADJUST
*	2401-9223KT	SEAL KIT;MAIN PUMP+REG.

4100 MAIN PUMP
